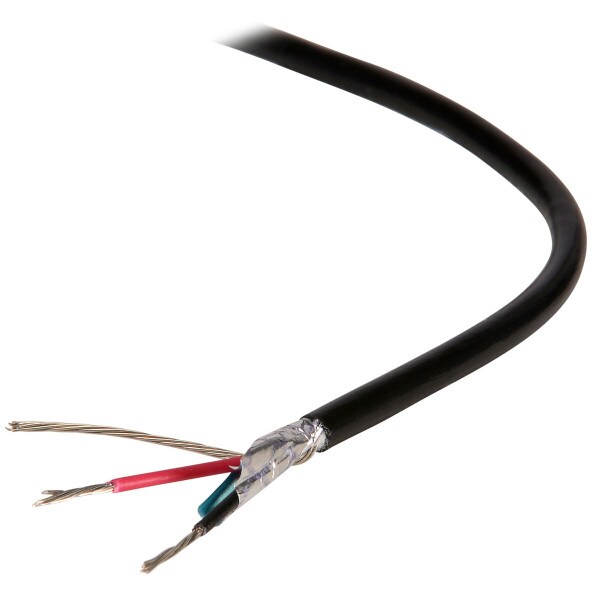

Belden Brilliance 8451 22 AWG 2C Mic Line Instrument Cable Beldfoil Shield 500 ft. USA

BeldenPart # 102-1266
Model: 8451 010500
Why trust other wire products to connect your audio system, when you can use Belden's well-proven 8451 2-conductor mic/line cable?

Key Features

  • Professional shielded wire for balanced and unbalanced audio signals
  • CMR/CMG and riser rated for permanent installation
  • Two 22 AWG stranded tinned copper conductors
  • Polypropylene insulation maintains high flexibility and excellent electrical properties
  • Beldfoil® shield (100% coverage with stranded tinned copper drain wire)
  • Small diameter PVC jacket offers low profile, easy handling, and good protection
Your Price: $199.98
+ FREE SHIPPING
MSRP: $283.99
Save $84.01 (30%)
Bulk Pricing
Only 2 In Stock More due any day
Get Notified When Available

We'll send you an email when Belden Brilliance 8451 22 AWG 2C Mic Line Instrument Cable Beldfoil Shield 500 ft. USA is back in stock or available for preorder.

Order in the next 1 hr 30 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Belden Brilliance 8451 22 AWG 2C Mic Line Instrument Cable Beldfoil Shield 500 ft. USA


Belden Brilliance 8451 2-conductor mic/line cable is the pro's choice for running point-to-point balanced and unbalanced audio signals in commercial and residential audio installations. Also works great for internal wiring of portable audio equipment racks.

The cable's composition has been optimized for high reliability and low susceptibility to electrical interference, thanks to its use of polypropylene insulation and 100% Beldfoil aluminum/polyester shielding. 8451 wire also features easy-to-solder 22 gauge tinned copper conductors, along with a tinned copper drain wire.

Specifications: • Conductors: (1 pair) 22 AWG tinned copper, 7x30 stranding • Shield: 100% Beldfoil® (Z-Fold®) aluminum foil-polyester tape • Nominal capacitance: 34 pF/ft. • Nominal impedance: 45 ohms • Insulation material: Polypropylene rubber • Outer jacket material: PVC • Overall diameter: 0.138".

Product Details

BrandBelden
Model8451 010500
Part Number102-1266
UPC848864005621
Unit of MeasureEach
Weight7.55

Product Specifications

Cable RatingCMR Rated
Jacket ColorBlack
Wire Gauge22
